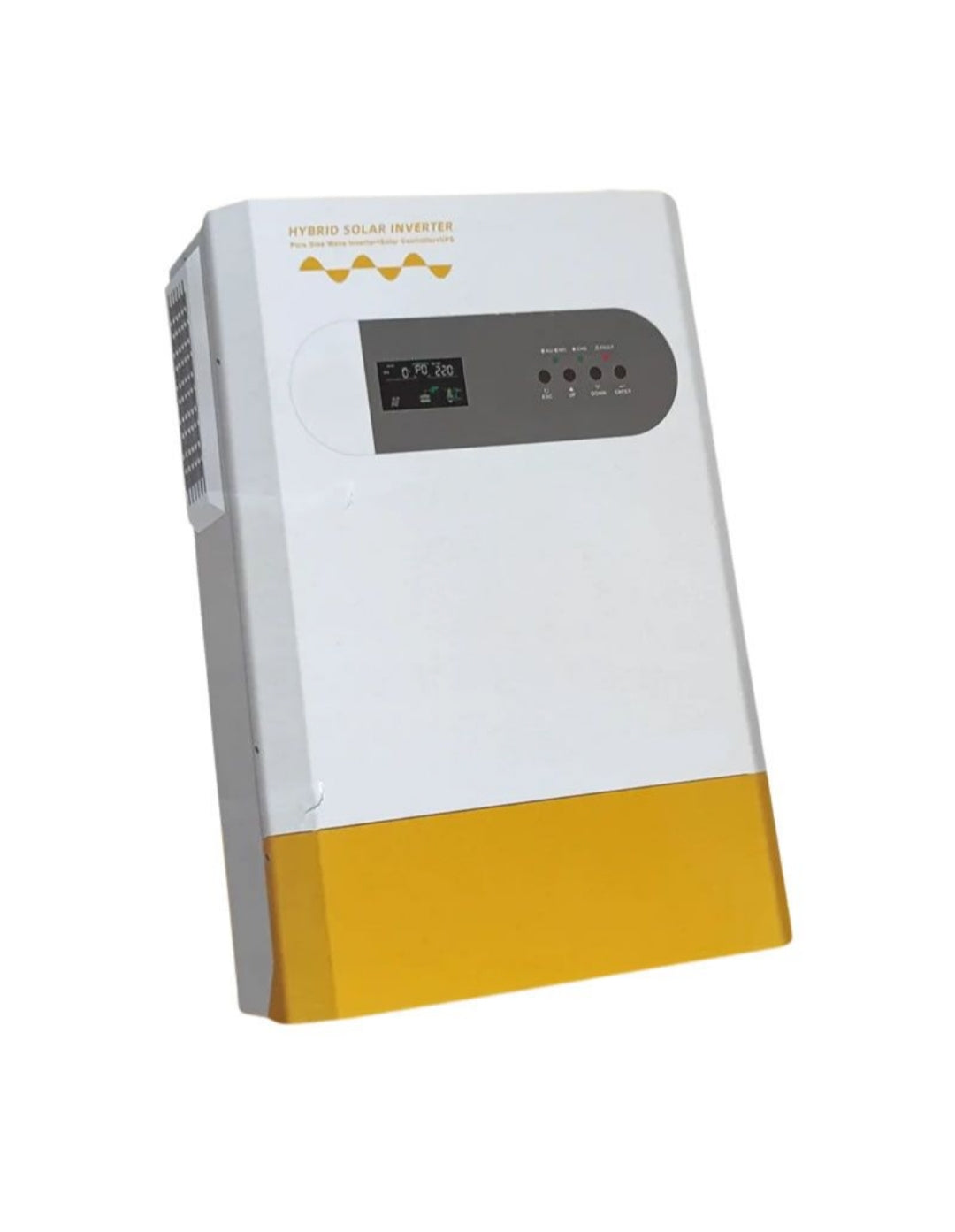

3.5kVa Hybrid Solar Inverter

Description;

• A high-frequency solar inverter with a built-in MPPT charge controller. This very new product combined an inverter and a controller which eliminates the need for numerous devices and excess cabling.
• A LCD screen to set and adjust your settings to have a better energy-efficiency Input Voltage, battery charging current and AC/Solar charger priority are configurable.
• Features;
• Pure sine wave solar inverter
• Built-in 80Amp MPPT controller
• WIFI wireless monitoring
• Running with or without battery
• Parallel without current sharing cables
• Multi-working modes; SOL, UTL, SBU

Specifications;

• Inverter Mode
• Rated Power; 3500VA/3500W
• DC Input; 24VDC,146A
• AC Output; 230VAC, 50Hz, 13A

AC Charger Mode;

• AC Input; 230VAC, 50Hz, 15A
• DC Output; 27VDC,30A
• AC Ouput; 230VAC, 50Hz, 13A

Solar Charger Mode;

• Rated Current; 80A
• System Voltage; 24VDC
• Min.Solar Voltage; 24VDC
• Best Vmp Range; 30-105VDC
• Max. Solar Voltage; 150VDC
• Model: FS-1008
• Item Code: GF-3524-FS
