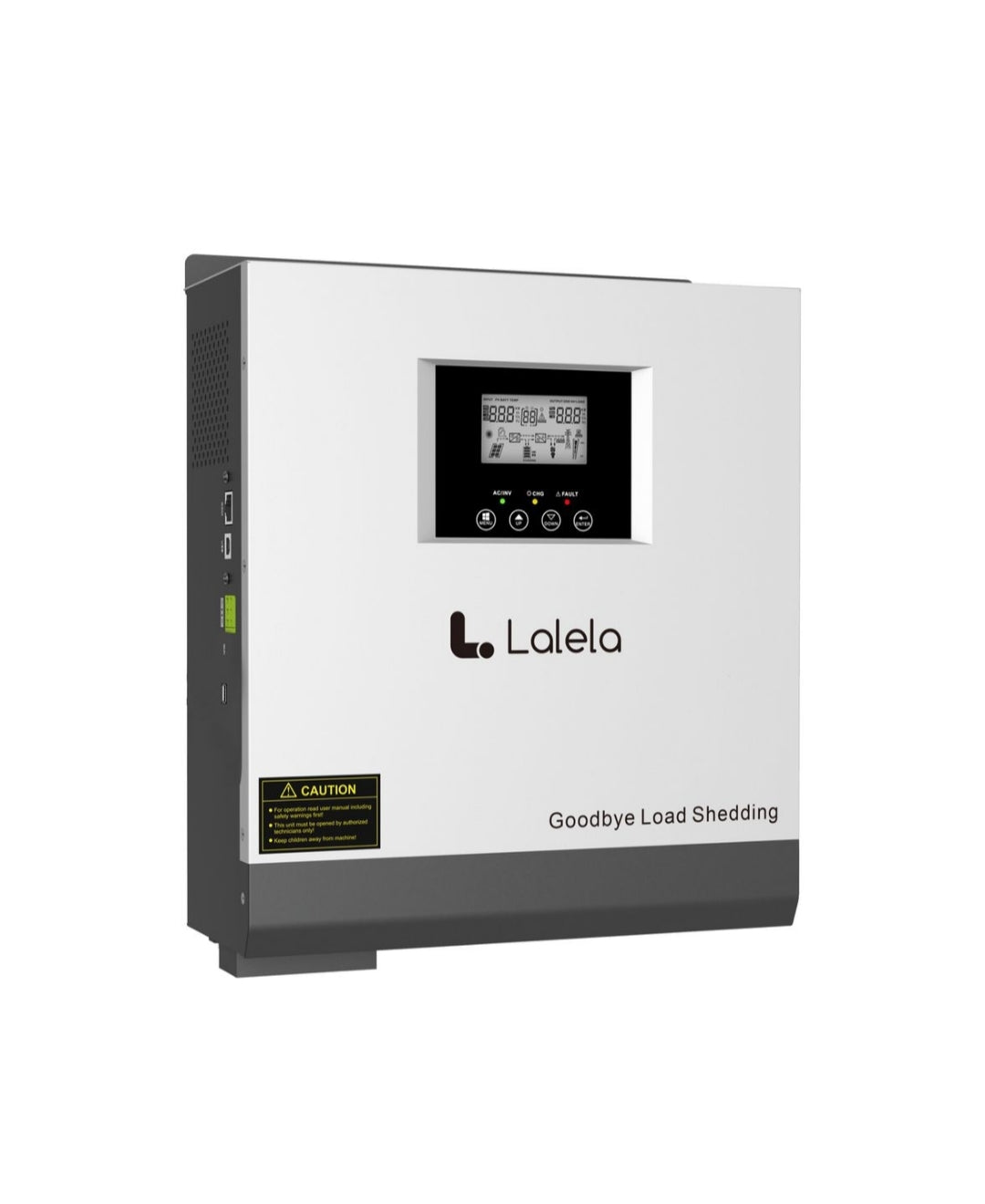

PRODUCT DESCRIPTION • Pure sine wave inverter • Built-in PWM solar charge controller • Selectable input voltage range for home appliances and personal computers • Selectable charging current based on applications • Configurable AC/Solar input priority via LCD setting • Compatible to mains voltage or generator power • Auto restart while AC is recovering • Overload and short circuit protection • Smart battery charger design for optimized battery performance • Cold start function
SPECIFICATIONS • Rated Power 3000VA/3000W • Input Voltage 230 VAC • Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT • AC Voltage Regulation (Batt. Mode) 230VAC ± 5 % • Surge Power 600OW • Efficiency (Peak) 93 % • Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances) • Waveform : Pure sine wave
BATTERY & AC CHARGER • Battery Voltage 24 VDC • Floating Charge Voltage 27 VDC • Overcharge Protection 30 VDC • Maximum Charge Current 20 A or 30 A
SOLAR CHARGER • Maximum PV Array Open Circuit Voltage 80 VDC • Maximum Charging Current 60A • Maximum Efficiency 98% • Standby Power Consumption 2 W
